PEX AL PEX Plastic Aluminum Composite Pipe Extrusion Line / Pipe Extrusion Machine for Plastic Aluminum Pipe Making

Weifang Kaide Plastics Machinery Co., Ltd
Contact Now

PEX AL PEX Plastic Aluminum Composite Pipe Extrusion Line / Pipe Extrusion Machine for Plastic Aluminum Pipe Making

Brand Name : KAIDEMAC

Model Number : KDPAP

Certification : CE

Place of Origin : Weifang, China

MOQ : 1set

Price : 80000-195000USD

Payment Terms : L/C, T/T

Delivery Time : 60 working days

Product Name : PEX AL PEX/PERT AL PERT Pipe Extrusion Line

Pipe Size : 16-32mm, 16-63mm

Production Speed : 8m/min; 15m/min

Welding Method : Overlap welding, by ultrasonic welder

Extruders : 4 numbers extruder, co-extrusion technology

Control System : SIEMENS PLC control

Contact Now

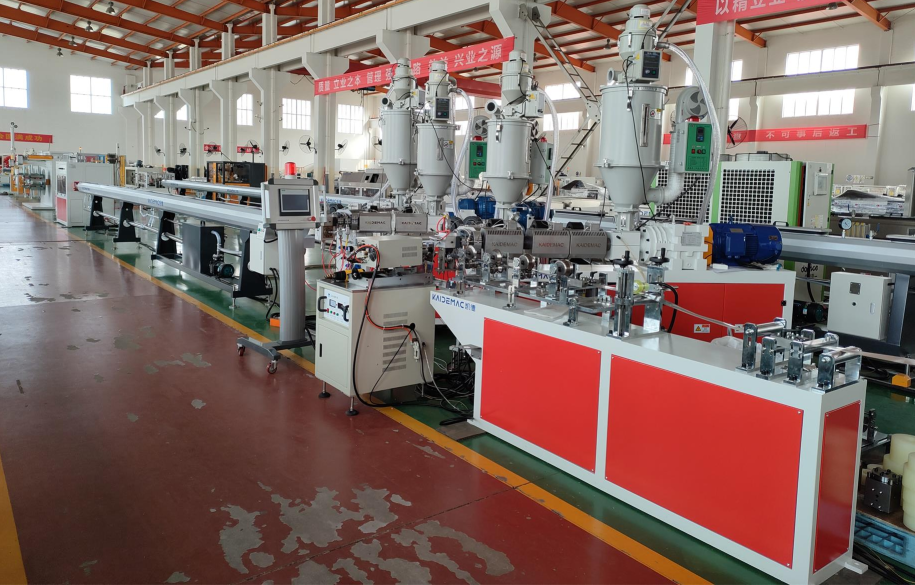

PEX-AL-PEX/PERT-AL-PERT Composite Pipe Production Line/ Pipe Extrusion Line

Below plastic pipe line is used to produce overlap welding type PEX-AL-PEX/PERT-AL-PERT pipes, with diameter range 16-32mm.

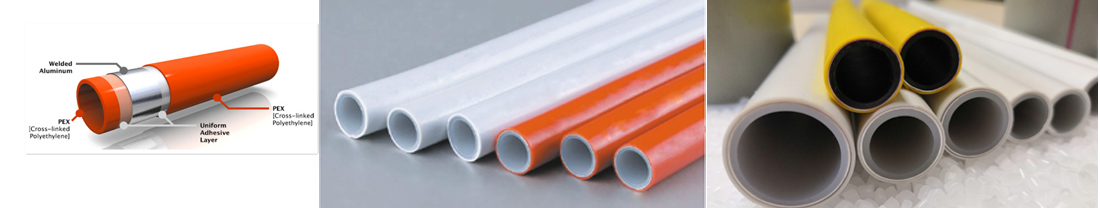

Produced pipe structure is 5 layer, PEX/PERT plastic layer-Adhesive layer-Middle Aluminum layer-Adhesive layer-Outer PEX/PERT plastic layer.

Pipe Making Process:

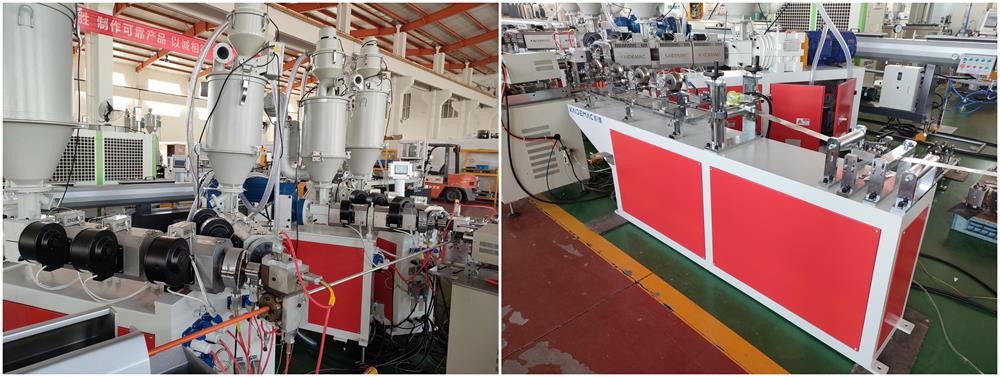

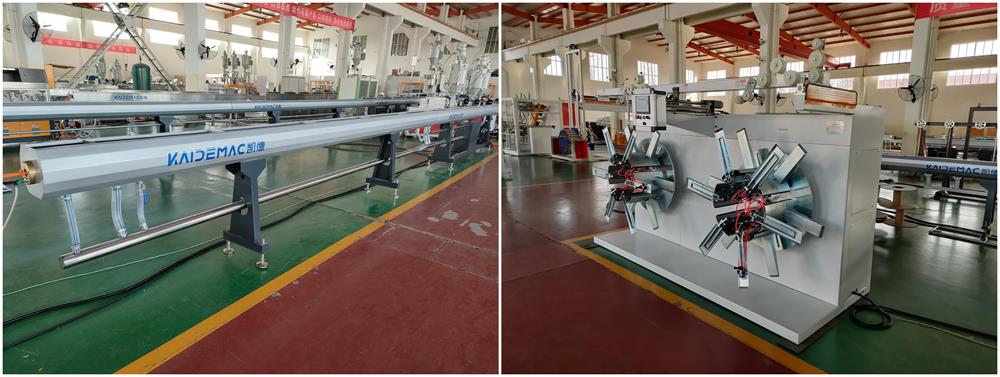

Aluminum pipe making (round shape forming)→ Inner Plastic and Adhesive layer Co-Extrusion→Al pipe Welding→Outer Adhesive and plastic Layer co-extrusion→Cooling tank → Haul-off machine→Cutting Machine→Winding machine

PEX AL PEX Plastic Aluminum Composite Pipe Extrusion Line / Pipe Extrusion Machine for Plastic Aluminum Pipe Making

Technical Data of Pipe Production Line:

Line Model Extruder Model L/D Production Scope Production Speed Nominal Power
KDPAP-45 SJ-45/45/30 30/25/25:1 Ф16-32mm 8-15m/min 93KW
KDPAP-65 SJ- 65/65/30 33/33/25:1 Ф16-63mm 8-15m/min 154KW

PEX AL PEX Plastic Aluminum Composite Pipe Extrusion Line / Pipe Extrusion Machine for Plastic Aluminum Pipe Making

Main Feature of the Pipe Production Line:

PEX AL PEX Plastic Aluminum Composite Pipe Extrusion Line / Pipe Extrusion Machine for Plastic Aluminum Pipe Making

1) This high efficient extruder is special designed by our company with independent intellectual property rights. The necessary technologies of high speed & stable production of composite pipes have been privatized in the die head mold, calibrating& cooling system, Haul-off system and cutting system.​

2) The Aluminum pipe is formed by ultrasonic overlap welding. It uses high quality and well-known brand welder, with even welding seam and good quality.

PEX AL PEX Plastic Aluminum Composite Pipe Extrusion Line / Pipe Extrusion Machine for Plastic Aluminum Pipe Making

3) The technology has been further developed based on original production machine technology. The Aluminum pipe forming molds and co-extrusion die head molds have been optimized and manufactured by imported high precise CNC machine, which have greatly increased the pipe forming accuracy and production speed.

4) It adopts original imported new generation PLC control system with full color screen, which ensures the high speed synchronous control and reliable operating of the whole production line.

PEX AL PEX Plastic Aluminum Composite Pipe Extrusion Line / Pipe Extrusion Machine for Plastic Aluminum Pipe Making

PEX AL PEX Plastic Aluminum Composite Pipe Extrusion Line / Pipe Extrusion Machine for Plastic Aluminum Pipe Making

Contact Us Right Now to Get Quotation!
